Automatic brick machine/clay brick machine/solid logo brick making machine
Product details

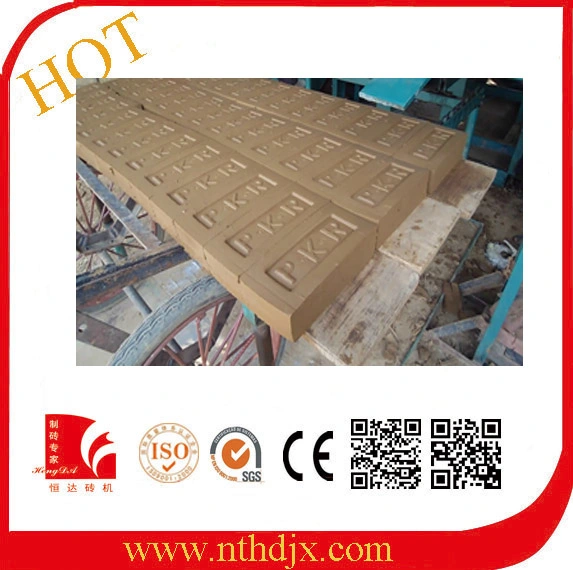

1.JKR40/40-20 logo brick making machine is suitable India, Nepal, Pakistan market, which need brick with logo on brick face. This machine prodction is 5000pcs/hour.
2.Logo clay brick production line main body is made from cast iron, main shaft and bearings one-time processing, good stability,low energy consumption,high efficiency and easy maintenance and without foundation bolts.
Attention:
1.JKR40/40-20 logo brick making machine with the Wear resistant metal spraying technology was applied to the screw, pug mill,axis of screw and seasoning, conditioning, quenching treatment make sure the body of brick extruder work in long life.
Wear resistant metal spraying technology
2.JKR40/40-20 logo brick making machine harden surface gear was adopted in reducer, clutch are a component with own patent, all the treatments make the brick machine life-saving
3.the reasonable design,compact structure reduce the energy consumption, without any shaking during working, even the Clay brick making machine can working normal without foundation bolts.
Clay as raw material logo brick making machine Process:

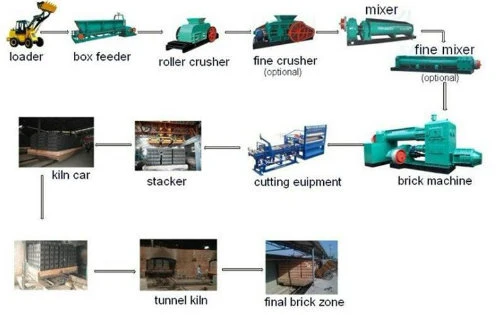

Clay→Box feeder →Belt conveyer→ Roller crusher→Double shaft mixer →Belt conveyer→ JKR40/40-20 brick machine for logo brick → Full-automatic brick cutting machine →Auto brick unloading machine
Enterprise Purpose:
1.Advanced and reliable design
2.Seek for perfection in quality
3.Heart and soul service
4.Endless pursuit
Buying tips
We have two kinds of brick machine, one produce brick machine for logo brick , another produce concrete block machine, when you want to buy, you please tell me
1. You need clay brick machine or cement brick machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
We are professional clay brick machine , concrete block machine and block pallet manufacturer, if you are interested, please come here.
My contact information
Name: Maggie
Product details
1.JKR40/40-20 logo brick making machine is suitable India, Nepal, Pakistan market, which need brick with logo on brick face. This machine prodction is 5000pcs/hour.
2.Logo clay brick production line main body is made from cast iron, main shaft and bearings one-time processing, good stability,low energy consumption,high efficiency and easy maintenance and without foundation bolts.
Item | Unit of measurement | JKR40/40-20 logo brick making machine |
Production capacity | standard brick/hour | 5000pcs/hour |
Maximum extrusion pressure | Mpa | 1.5-2.5 |
Vacuum degree | Mpa | ≥0.092 |
Power | KW | 75-90 |
Weight | t | 10.5 |
Overall size | mm | 4200×1380×1260 |
Attention:
1.JKR40/40-20 logo brick making machine with the Wear resistant metal spraying technology was applied to the screw, pug mill,axis of screw and seasoning, conditioning, quenching treatment make sure the body of brick extruder work in long life.
Wear resistant metal spraying technology
2.JKR40/40-20 logo brick making machine harden surface gear was adopted in reducer, clutch are a component with own patent, all the treatments make the brick machine life-saving
3.the reasonable design,compact structure reduce the energy consumption, without any shaking during working, even the Clay brick making machine can working normal without foundation bolts.
Clay as raw material logo brick making machine Process:
Clay→Box feeder →Belt conveyer→ Roller crusher→Double shaft mixer →Belt conveyer→ JKR40/40-20 brick machine for logo brick → Full-automatic brick cutting machine →Auto brick unloading machine
Enterprise Purpose:
1.Advanced and reliable design
2.Seek for perfection in quality
3.Heart and soul service
4.Endless pursuit
Buying tips
We have two kinds of brick machine, one produce brick machine for logo brick , another produce concrete block machine, when you want to buy, you please tell me
1. You need clay brick machine or cement brick machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
We are professional clay brick machine , concrete block machine and block pallet manufacturer, if you are interested, please come here.
