Qt4-24 semi-automatic block machine for hollow blocks in Kenya

QT4-24 block making machine in kenya1.Block Machine Pictures 2.QT4-24 brick machine factory production flow 1). Raw material: use hopper trolley delivery into mixer; need 2 workers2). Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker3). Hollow block mac

Featured Products

QT4-24 block making machine in kenya

1.Block Machine Pictures
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block

2.QT4-24 brick machine factory production flow

Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block



1). Raw material: use hopper trolley delivery into mixer; need 2 workers

2). Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker

3). Hollow block machine: Forming blocks, then delivery to stacker by block receiver; no need workers

4). Maual forklift trolley: delivery new blocks to curing area; need 2 workers

5). Curing area: Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers

6). Trolley: delivery pallet to hollow block machine area; need 1 worker

7). Sell blocks: Sell blocks and management; 1 worker

Total need about 7-8 workers in QT4-24 hollow block machine factory.

3.QT4-24 semi Automatic Block Production line

Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block

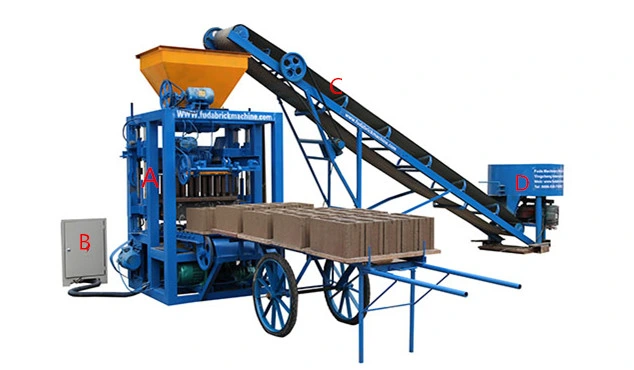

(1)QT4-24 automatic brick production line introduce

A

QT4-24Host machine

a. Block delivery system

b. Hopper

BControl box
C6m conveyor
DJQ350 Mix,Power,7.5KW
EStacker Laying 2-3 pallets per time power, 1.5kw
Color feeder system
(Optional)
QT4-24 Color feeder machine--Automatic hydraulic machine
Color mixer--1.2m; 7kw
6m conveyor

(2)QT4-24 Semi Automatic brick plant technical information:

QT4-18 Host machine total power13.45KW
Molding cycle24s
Vibration frequency4000-4800HZ
Vibration force50KN
Host brick machine size

2060*1730*2580mm

Weight3000KGS
Pallet size850*550mm

4.QT4-24 block machine production capacity:

ItemBlockProduction capacityPhoto
1

Hollow/Solid block

400-200-200mm

4 pcs/mold
4800 pcs/8h

2

Hollow/Solid block

400-150-200mm

5 pcs/mold
6000 pcs/8h
3

Hollow/Solid block

400-100-200mm

7 pcs/mold
8400 pcs/8h
4

Houdi block

450-120-200mm

6 pcs/mold
7200 pcs/8h

5

S shape paver

225-112.5-60mm

12 pcs/mold
14400 pcs/8h

6

I shape paver

200-160-60mm

8 pcs/mold
9600 pcs/8h

7

Holland paver

200-100-60mm

12 pcs/mold
14400 pcs/8h


5.Block machine video link and size

QT4-18 block machine video link https://fudabrickmachine.en.made-in-china.com
QT4-25 block machine video link https://fudabrickmachine.en.made-in-china.com
QT4-24 block machine video link https://fudabrickmachine.en.made-in-china.com

6.Block machine Advantage
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block


7.Hot Product and Machine Samples
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block


8.About us
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block


9.Factory detail show
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block

10.Certificate
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block


11.After Sales Service and FAQ
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block
12.Delivery machine pictures
Qt4-24 Semi Auto Block Making Machine in Kenya for Hollow Block
