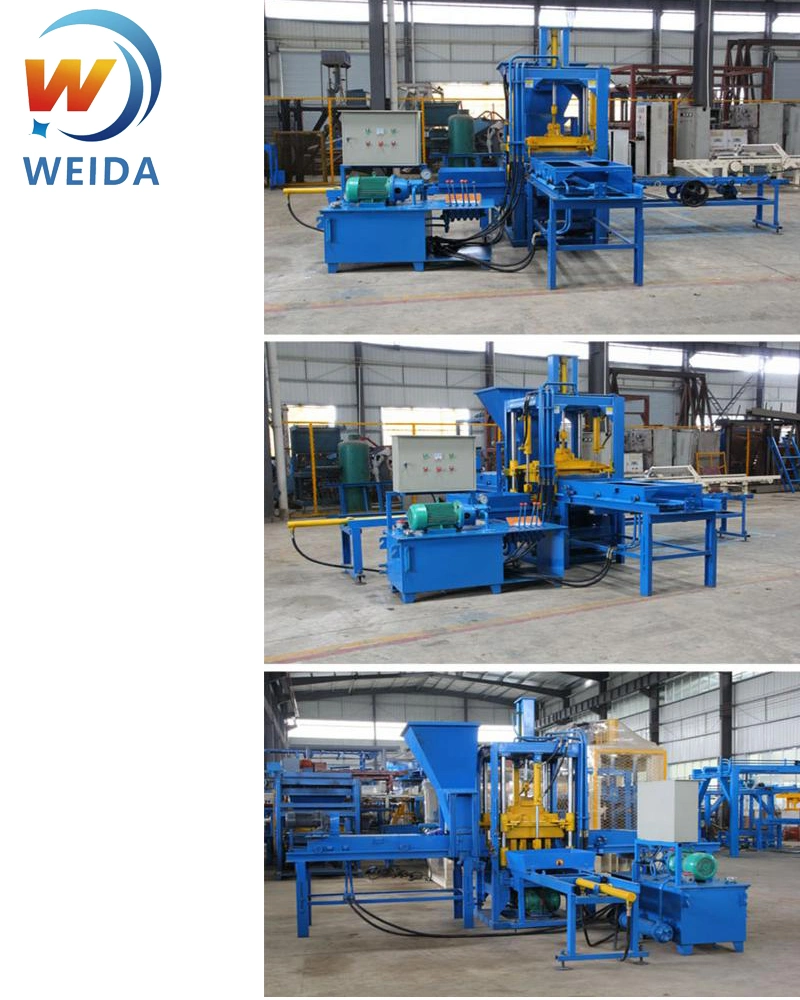

Hydraform brick making machine/hollow Concrete brick machine/manual brick making machineProduct Description(A-F)
Features:
It has the features of compact structure, easy operation, convenient maintenance, reliable economical and practical, suitable for those investors who are in small or medium scale.
1) Simplified hydraulic system, workers can handle the operation easily
2) Simple horizontal secondary material feeding, combine both pressing and vibrating, ensure the high compactness and performance
3) Twin electric motor forming, saves the time and money
4) Compact structure, easy operation, convenient maintenance, solid and reliable, suitable for customers start the investment.
A Technical paramaters
| Machine name | QTF3-20 |
| Rated pressure | 16 Mpa |
| Dimension | 3500x2000x2930mm |
| Forming Cycle | 15-20s |
| Vibration form | Platform vibration |
| Weight | 3000kg |
| Working area | 100-150 sq.m |
| Pallet Size | 680X550mm |
B Concrete Block Production Capacity
The production capacity depends on this forming machine and it is also the essential part of the whole production line.You can change moulds on this parts to make different shaps of colored paving blocks, concrete hollow bricks, and curbstons.
| NO | Size(LXWXH) | Reference photos | Pcs/Mould | Pcs/Hour | Pcs/shift |
| 1 | 400x200x200mm |  | 3 | 450 | 3600 |
| 2 | 400x100x200mm |  | 5 | 750 | 6000 |
| 3 | 200x100x60 color paving brick |  | 10 | 1500 | 100 |
| 4 | 200x163x60 paver blocks |  | 3 | 450 | 3600 |
C Block samples
Different shaps of colored paving blocks, hollow concrete bricks, and kerbstons production by one machine only
D Programme PLC with motor electronic parts
• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Germany Siemens Brand
• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .
• about the switches ,we will use France Schneider or China CHNT
E Machine loading photos
F Concrete Block Machine on client site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• The demoulding synchronizer avoids the damage to concrete products.
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.With RMB 16 million investment and 53,000square meters area, We are always developing good and realiable machinery with international standards to meet clients demands(people-oriented, leading technology, winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss for long term cooperation. we are 24 hours service on you
Thank you !
