Concrete hollow block maker machine QT4-26 Compressed Earth Block Maker Brick Making Machine
Qt4-24b Cement Concrete Hollow Brick Making Machine
1.Introduction
QT4-24B is mechanical vibration type baking-free brick machine(down-vibration box with 2 sets 3.5 KW motor,
up-vibration motor with 1 set 3 KW vibration motor),push-pull mould by electric.dosing material at a time,easily
operated,save labour with less workforce.Regular production use 3-4 workers,one worker control mixer,one
operate the host machine,2 transporting green blocks

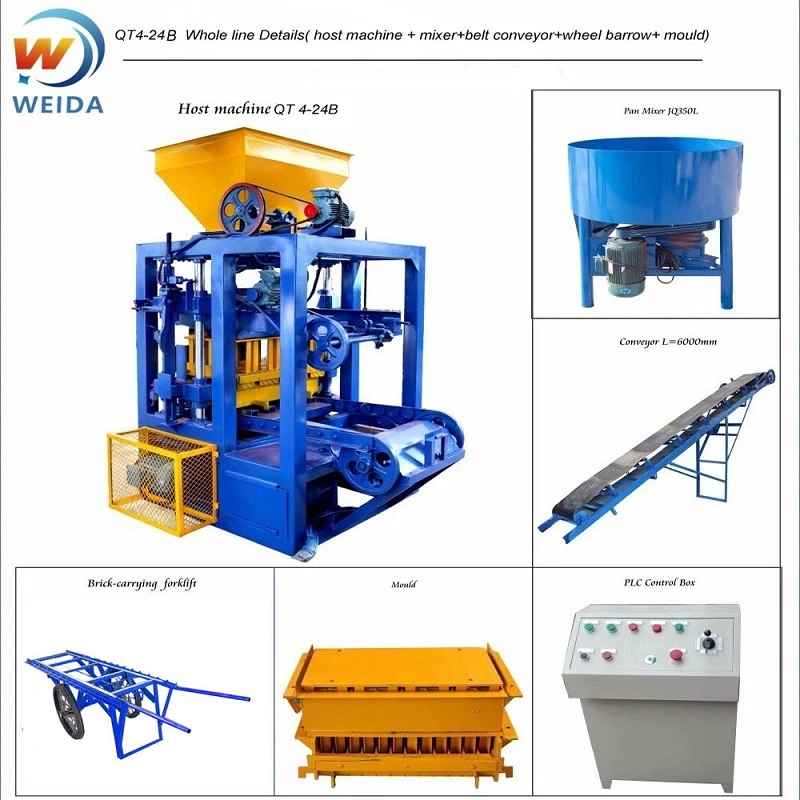

2.Main parts dispaly for QT4-24 semi Automatic Block making machine
3. Main parameters of QT4-24B Semi Automatic block making plant
QT4-24B Host machine total power | 13.45kw |
Molding cycle | 24s |
Vibration frequency | 4200hz |
Vibration force | 35.5kn |
Function | Semi automatic vibration forming |
Host brick machine size | 1850(L)×1900(W)×2550(H)mm |
Net Weight | 1850KG |
Pallet size | 850-550MM |
Mixer model: | JQ 350 |
Voltage: | 220-415 V |
4.QT4-24B block machine production capacity show:
Theoretical Production capacity | |||
Size(LxWxH) | PCS/Mould | PCS/ Hr | PCS/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-450 | 2880-3600 |
400X250X200 | 3 | 270-360 | 2160-2880 |
200X200X200 | 6 | 540-720 | 4320-5760 |
5 Different shaps of colored paving blocks, hollow concrete bricks,
and kerbstons production by one machine only
6 .Aprox Investment Solution of QT4-24 Semi autom pavement making machine:
Total Power Consumption | 81.4 kilowatte /8 hours |
Max. Material Consumption Per 8 Hours a. Concrete: 10% cement, 30% sand; 60% stone powder b. 400-200-200mm; 2 holes hollow block | Water: about 1664 kgs |
Sand: about 18345 kgs | |
Stone powder: about 36692 kgs | |
Factory total size | At least 800 square meters |
Workers | 3-4 workers in factory |
Main parts quality | Motor: Shanbo brand (Chinese famous brand) Inductor and Switch: CHNT |
7 Finish Concrete Blocks production on client site
8 Our company certificate:
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.
With RMB 16 million investment and 53,000square meters area, We are always developing good and
realiable machinery with international standards to meet clients demands(people-oriented, leading technology,
winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60
technician to ensure superior installations and after sale service to assist clients to install the machine
and perform the proper trainning abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss
Thank you !
FAQ
1.How can I trust your machines' quality?
Our products has been checked and got the certicification ISO9001 and CE, our machines have been exported to more than
100 countries and always have a good reputation of its quality. What's more,every machine will be tested carefully
before shipment,making sure all the machines operate perfectly when it comes to your hand.
2.What about payment terms?
30% TT advance,70% balance payed before shipment.
3.How long is the guarantee period?
Our warranty is one year.
4.Can you help for installation?
For some products,we will send a professional and high levels installation engineer team at the same time.
In order to supply you a full range of products installation services.
